OEM Solutions

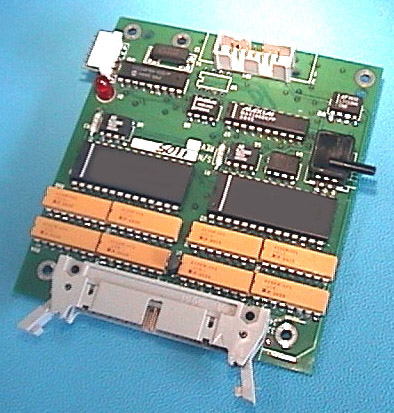

	16-CH Data Acquisition System (DAS) 16 differential inputs. Input types: Thermocouples, RTD, current loop, & voltage Output type: RS-485, RS-232, I2C 12-bit Resolution PC-104 board outline and mounting hole pattern.

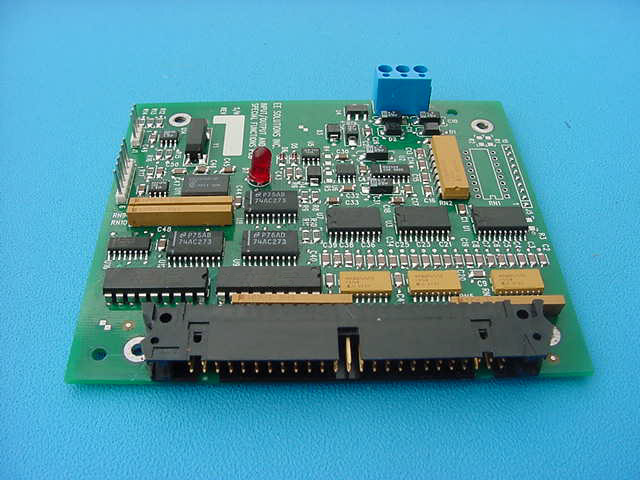

	Super I/O Board 8 TTL and 16 discrete inputs. 8 open collector outputs. 50V 500mA rating. 4-channel differential analog inputs. RS-485 output. PC-104 board outline and mounting hole pattern.

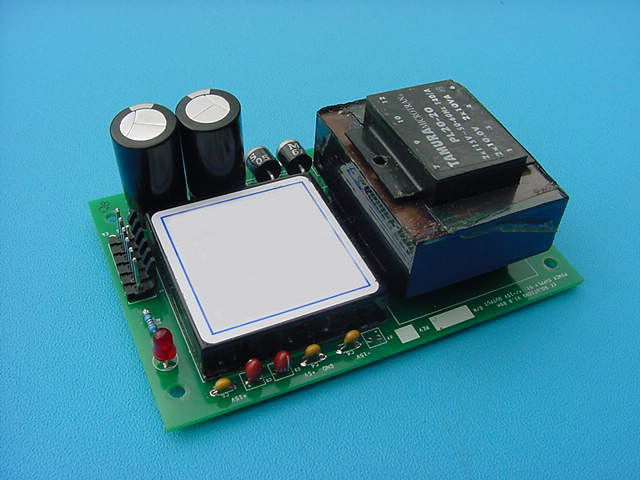

	Extended Temp P/S -40° ~ +85° C rating 5V at 2.5A, +/- 15V at .25A outputs 115/230V input Five-sided shielded case. Industry standard foot print.

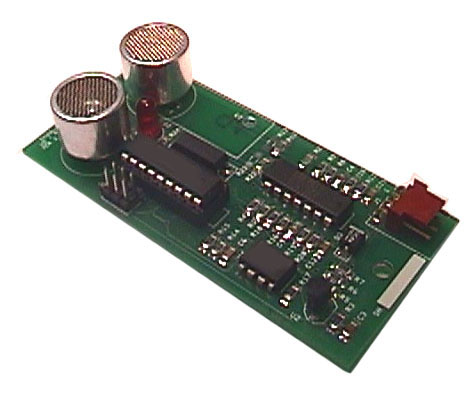

	Ultrasonic Distance Measurement Module 2" ~ 10' @ +/- 1" increments. 10' ~ 20' @ +/- 2" increments. RS-485 interface.

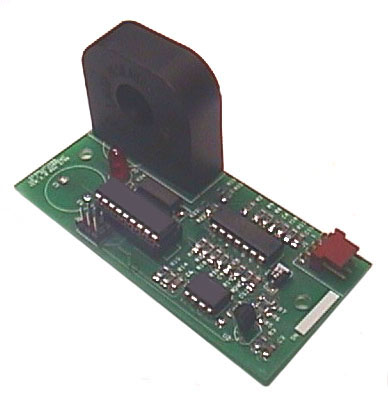

	AC Current Monitor 0 ~ 5A, 0 ~ 10A, 0 ~ 25A, 0 ~ 50A ranges 5/60 Hz or 400 Hz RS-485 interface.
